Insulated Cold Room Panels
Cold Room Panels
Core Thickness
Outer Sheet
Insulation Type
Length Options
Insulated Panels

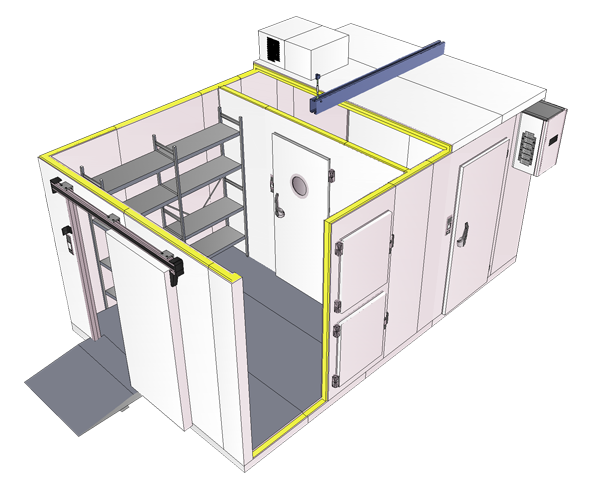

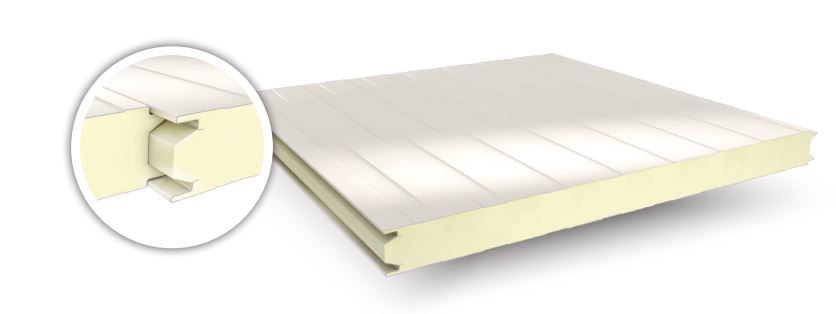

Our panels are energy-efficient and energy-saving due to their great insulating lightweight with low thermal conductivity qualities that reduce the amount of energy needed for cooling. During the manufacturing process, closed-cell insulation is injected between sealed metal plates, resulting in an insulated cold room sandwich panel. The usage requirements are in compliance with current regulations.
- PIR Panels
- PUR Panels
- Rock Wool Panels
PIR is hard to beat in terms of overall panel performance. Insurer-approved levels of fire resistance, a remarkable strength-to-weight ratio, hygienic and temperature management, and quick build times are all provided by PIR core panels. All sanitary cold, chill, and ambient environments can use fire-rated PIR wall and ceiling panels.
Up to one hour of fire resistance is offered by PIR cores. When PIR is in contact with flame, it develops a robust carbonaceous char that prevents the core foam from igniting. Industry-wide, PIR is acknowledged as the fire-safe substitute for other foam cores including polyurethane and polystyrene.
- Core Material - PIR
- Fire Performance - B-s1; d0
- Core Thickness = d (mm) - 40 | 50 | 60 | 70 | 75 | 80 | 100 | 120 | 150 | 180 | 200
- Outer Sheet Thickness (mm) - 0,45 - 0,50 - 0,60 - 0,70 - 0,80
- Inner Sheet Thickness (mm) - 0,35 - 0,40 - 0,45 - 0,50 - 0,60 - 0,70 - 0,80
- Multiple colour options available for production
The closed-cell rigid polyurethane foam used in the polyurethane insulation is made of two completely CFC-free blowing agents. The foam has been tested in conjunction with steel, aluminium, and GRP panel facings and has demonstrated excellent adherence and density distribution.
The closed cell structure of PU insulation ensures a high level of vapour and air resistance for the duration of the product life. This makes it possible to find effective and resource-saving ways to accomplish the airtightness of the building envelope, which is one requirement for structures that use almost no energy.
- Core Material - PUR
- Fire Performance - B-s2; d0
- Core Thickness = d (mm) - 40 | 50 | 60 | 70 | 75 | 80 | 100 | 120 | 150 | 180 | 200
- Outer Sheet Thickness (mm) - 0,45 - 0,50 - 0,60 - 0,70 - 0,80
- Inner Sheet Thickness (mm) - 0,35 - 0,40 - 0,45 - 0,50 - 0,60 - 0,70 - 0,80
- Multiple colour options available for
High shear, compression, and tensile strengths are provided by Mineral Fibre, a high-quality non-combustible bonded Rock wool with a vertical fibre structure. The panels guarantee superior fire resistance, acoustic performance, and good insulation values. The Rock Wool Core is completely recyclable, (H) CFC-free, and water-repellent. Completely resistant to decay and vermin, and does not promote the development of fungi, mould, or germs.
For wall and ceiling installations in hygienic cold and ambient environments when internal temperatures are above 0°C, fire-rated Mineral Fibre Panels are the best choice. The panel offers the best compromise between weight, price, and fire performance. Mineral Fibre is a non-combustible core, providing Fire Resistance of up to 4 hours.
- Core Material - Rock Wool
- Fire Performance - A2-s1; d0
- Core Thickness = d (mm) - 50 | 60 | 70 | 75 | 80 | 100 | 120 | 150
- Outer Sheet Thickness (mm) - 0,50 - 0,60 - 0,70 - 0,80
- Inner Sheet Thickness (mm) - 0,40 - 0,45 - 0,50 - 0,60 - 0,70 - 0,80
- Multiple colour options available for
